MIL connectors inspection
Robotic repositioning
Autofocus
PASS/FAIL verdict
Scratch detection
High resolution
Industry standards
Connects to tablet or laptop
The Glide MT is a robotic 2D microscope for inspection of multiple MT and single-fiber termini end faces in MIL-DTL-38999 connectors for scratches, defects, and contamination.
With its XYZ motion system, the microscope moves from ferrule to ferrule in a programmed sequence, ensuring a fully automated, non-contact inspection process.
Ideal for production lines, receiving inspection, and field use, the Glide MT ensures reliable quality control and troubleshooting.
Part number for ordering: Glide MT.

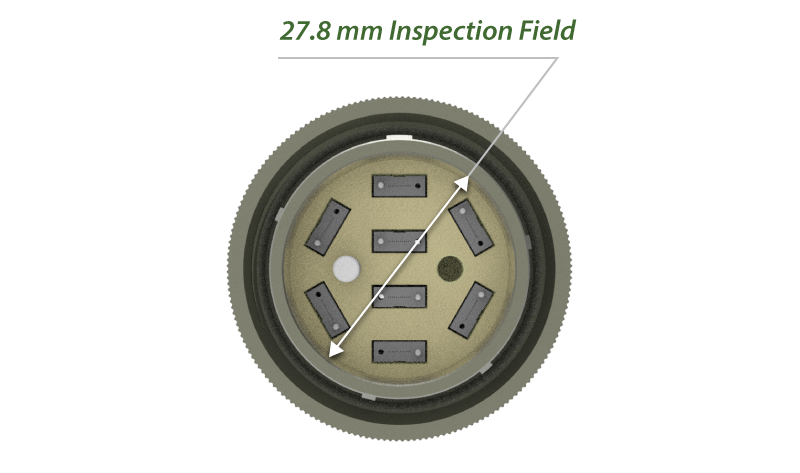

Covers up to a 27.8 mm inspection field via automated XY movement.
Sample connector configuration that can be inspected with the Glide MT.

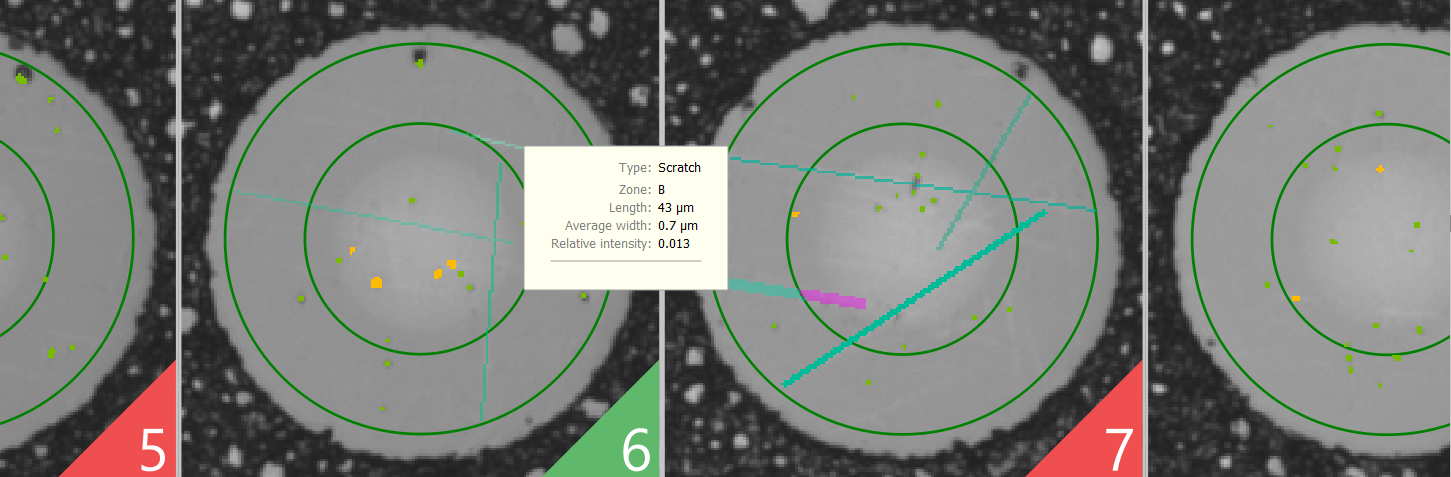

Achieve precise inspection results with an effective resolution of 1.6μm and the capability to detect defects as small as 0.5μm.

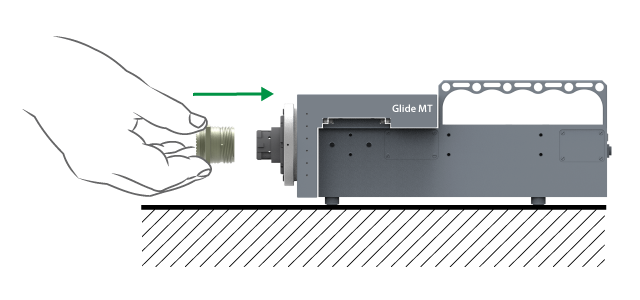

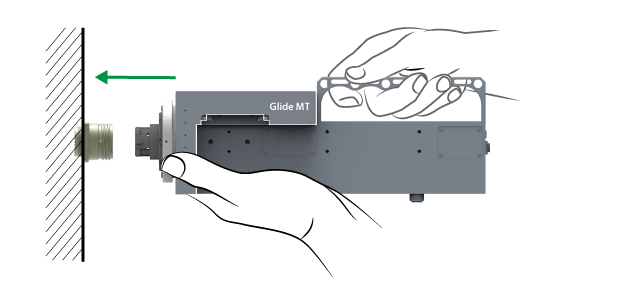

Inspect both plugs and receptacles during connector production and field maintenance.
Robotic XYZ motion system enables fully automated inspection of multiple MT and termini end faces in MIL-DTL-38999 connectors.
The ferrules remain intact during inspection.
Get email support, software updates, remote hardware troubleshooting, and access to video tutorials.
Purchased with the Glide MT microscope.
(i) e-mail support for all technical issues relating to the use of the device and the MaxInspect software within one (1) business day of receipt;
(ii) all revisions and updates to the MaxInspect software;
(iii) remote hardware and software demonstration, help desk and video tutorials;
(iv) remote hardware troubleshooting;
(іv) providing a loaner unit for the period of repair (upon availability and if requested).
Extending the Support Plan is optional. If the Support Plan is extended for next year continuously (without a break in support), a 50% discount for the Support Plan applies.
Perform inspections per IEC, Telcordia or custom Pass/Fail criteria.
Centralize data from multiple sites and easily integrate Sumix equipment with your existing manufacturing systems.
Learn more
Part number for ordering: Glide MT
Glide MT digital inspection system includes:
Adapters to different connector types should be ordered separately.
Order optical connector cleaners together with a microscope.

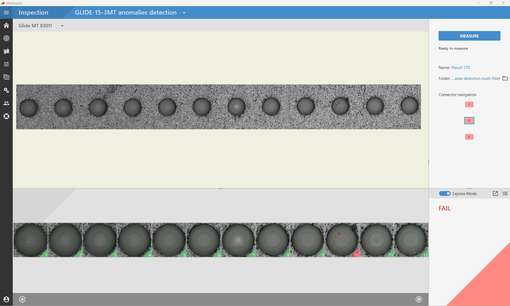

Express result for the 2nd ferrule of a 3-ferrule MT D38999 connector, shell size 15, receptacle, socket insert.

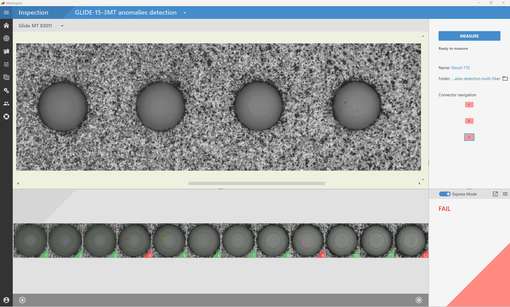

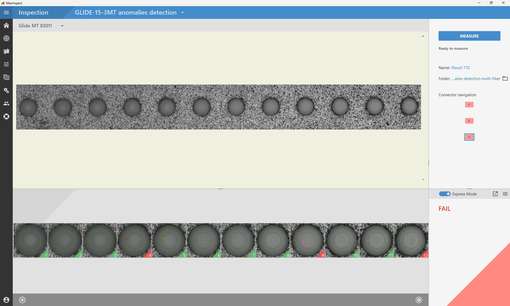

Express result for the 3rd ferrule of a 3-ferrule MT D38999 connector, shell size 15, receptacle, socket insert.
Zoomed-in express result for the 3rd ferrule of a 3-ferrule MT D38999 connector.

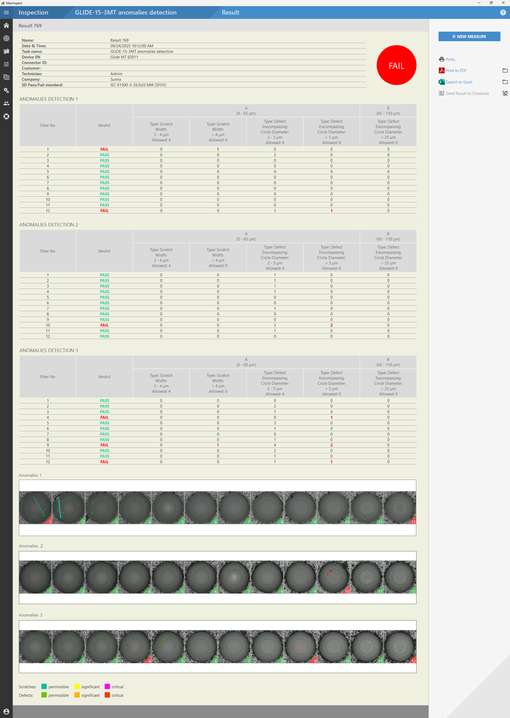

Complete report for a 3-ferrule MT D38999 connector, shell size 15, receptacle, socket insert.
