Single fiber inspection
Multi-fiber inspection
Autofocus
PASS/FAIL verdict
Scratch detection
High resolution
Industry standards
Connects to tablet or laptop

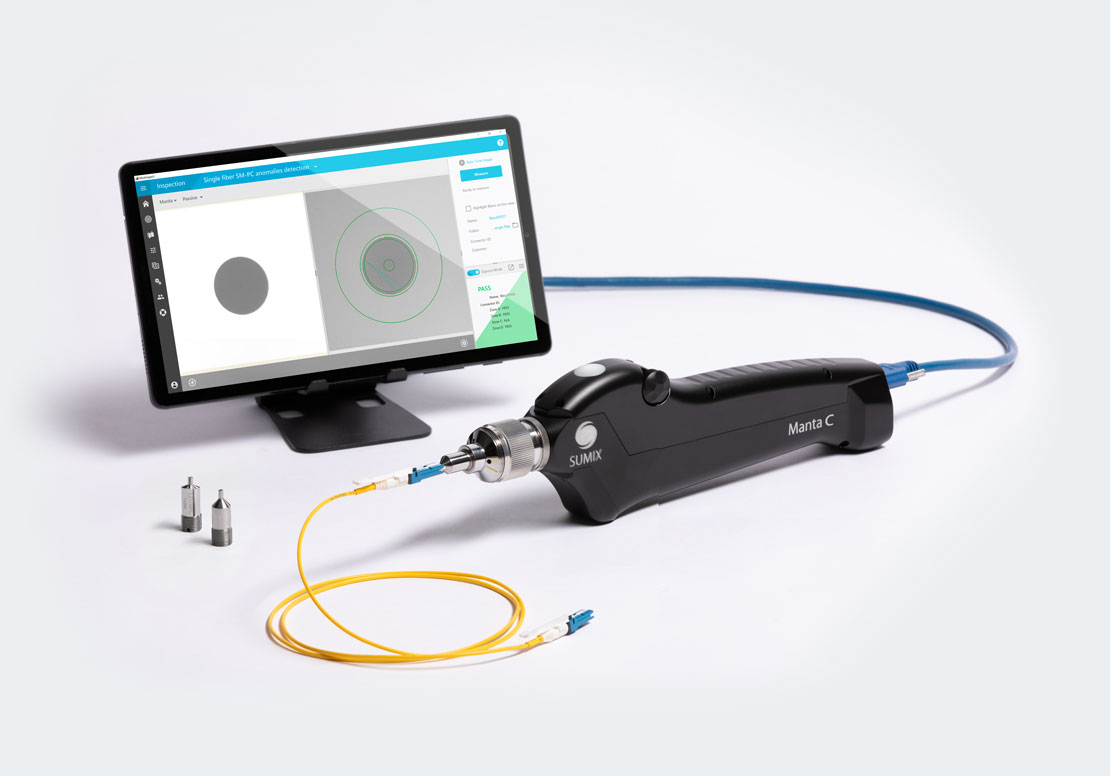

The Manta C is a wide field-of-view microscope probe for single-fiber inspection, designed to ensure cleanliness of the fiber end face and ferrule surface - ideal for large-fiber and large-core military connectors.
It supports a broad range of connector types, including LC, FC, SC, MU, E2000™, CS®, SN®, MDC, Arinc, Avim, mini-Avim, SMA, high-power SMA, and MIL-spec termini, on both patch cord and bulkhead sides. MTP®/MPO inspection is available in two scans (2 seconds each).
Suitable for field, lab, and manufacturing environments, the Manta C is essential for quality control, incoming inspection, and network troubleshooting.
Part number for ordering: SMX-Manta-C.
Check the fiber end face along with the surrounding ferrule surface. Inspect large fiber and large-core military connectors.
* Compared to other handheld microscopes for single-fiber inspection.
Achieve precise inspection results with 1.8 µm optical resolution and 0.59 µm/pixel camera resolution.

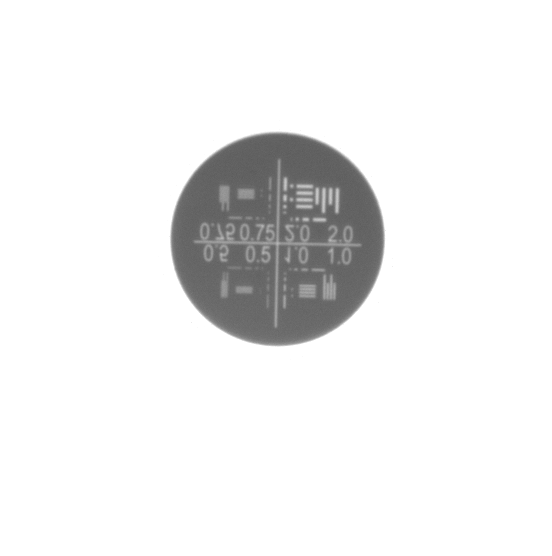

End face of a reference test-object demonstrating the resolution of Manta C.
The width of etched lines and the distance between them is defined by the value in microns in the corresponding quadrant.
Control and measure the angular alignment of the stress elements in polarization-maintaining (PM) fibers.
Capture sharp, repeatable images at the push of a button.
Get a Pass/Fail report for a single-fiber connector in 1 second. Inspect MPO in two fast scans (~2 seconds each), with a manual shift in between.
Get email support, software updates, remote hardware troubleshooting, and access to video tutorials.
Purchased with Manta C microscope.
(i) e-mail support for all technical issues relating to the use of the device and the MaxInspect software within one (1) business day of receipt;
(ii) all revisions and updates to the MaxInspect software;
(iii) remote hardware and software demonstration, help desk and video tutorials;
(iv) remote hardware troubleshooting;
(іv) providing a loaner unit for the period of repair (upon availability and if requested).
Extending the Support Plan is optional. If the Support Plan is extended for next year continuously (without a break in support), a 50% discount for the Support Plan applies.
Compact form factor allows easy integration into robotic manufacturing lines. API is available in the MaxInspect™ software package.
Perform inspections per IEC, Telcordia or custom Pass/Fail criteria.
Centralize data from multiple sites and easily integrate Sumix equipment with your existing manufacturing systems.
Learn more
Part number for ordering: SMX-Manta-C
SMX-Manta-C digital inspection system includes:
Tips and other accessories should be ordered separately.
Order optical connector cleaners together with a microscope.
Test result for a 2.5/PC connector

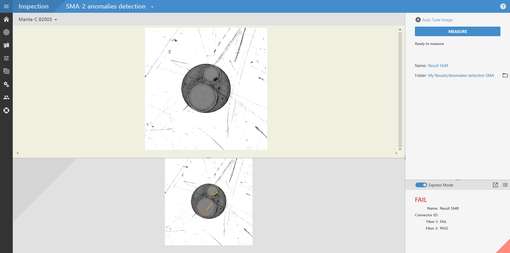

Test result for a 2-fiber SMA connector

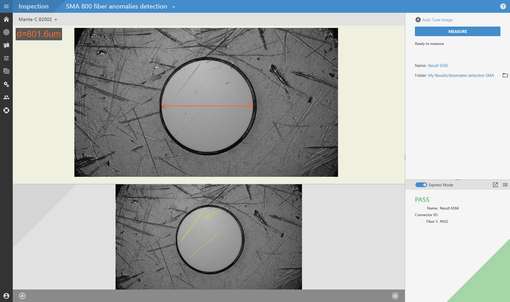

Test result for a 800 µm SMA connector

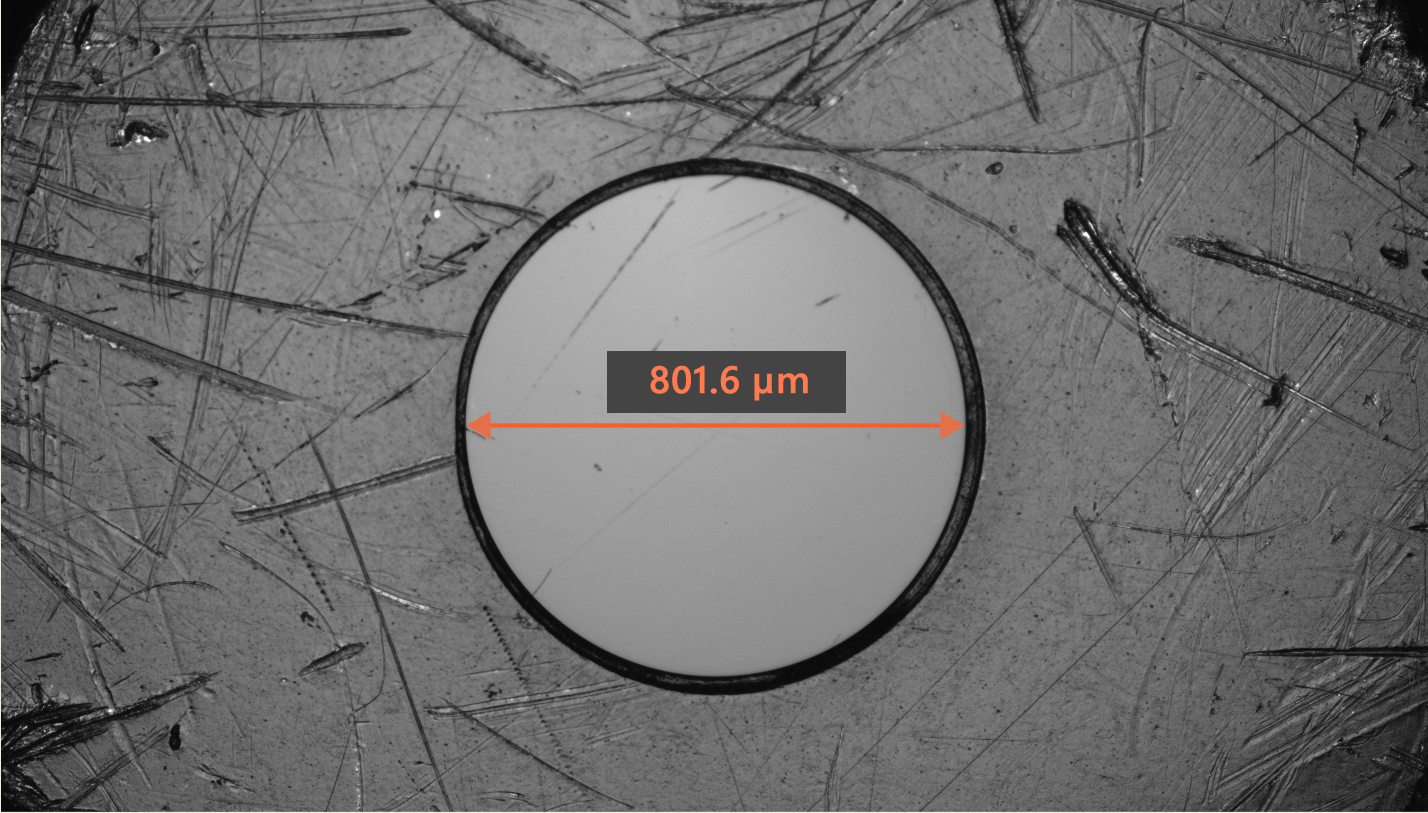

Live view of an SMA connector with 480 µm fiber

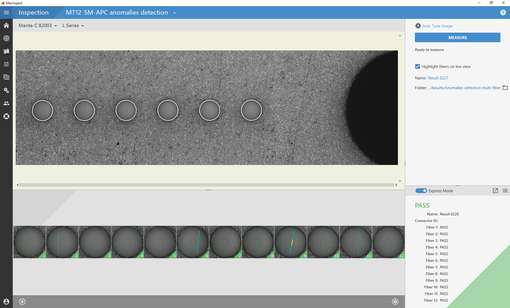

Test result for a 12-fiber MPO/APC connector

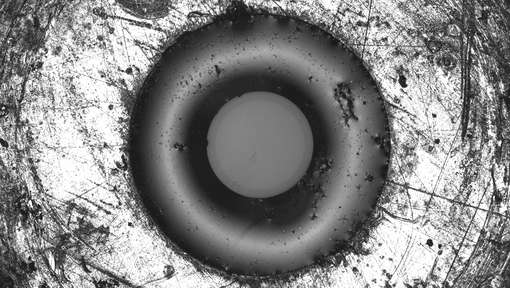

Test result for an AVIM connector

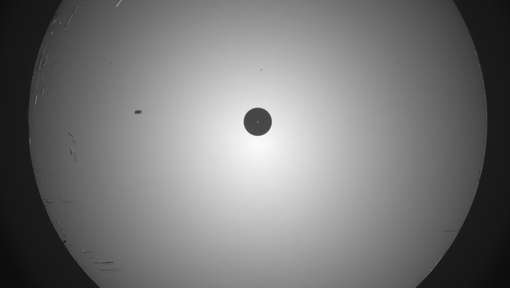

Live view of a single-fiber ferrule at full viewport.

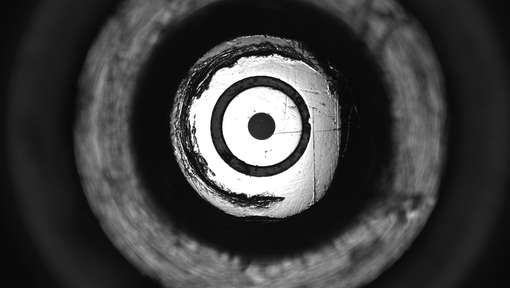

Live view of an AVIM connector at full viewport

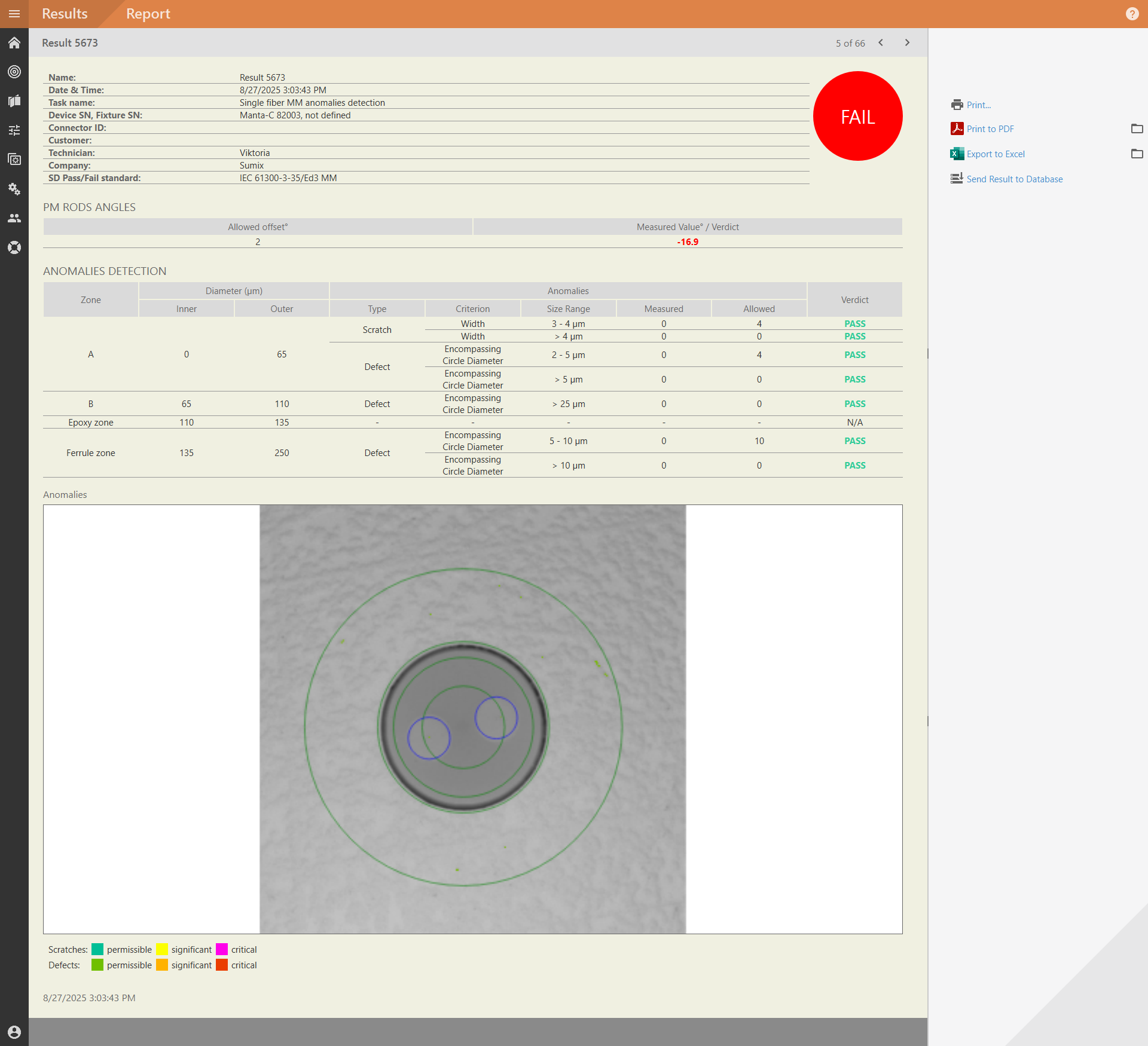

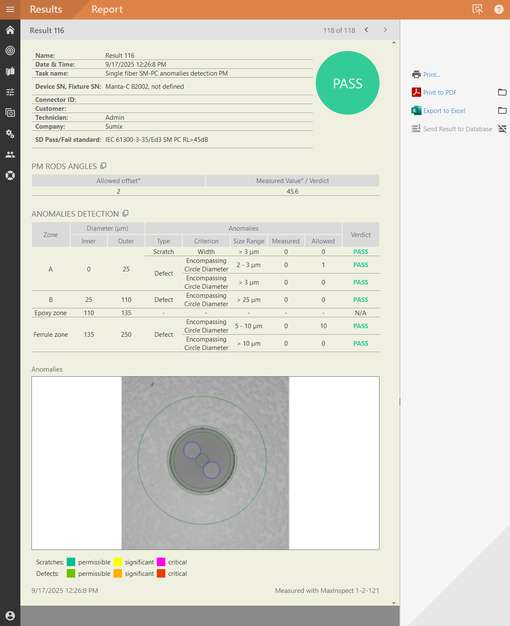

Test result for a connector with polarization-maintaining (PM) fiber

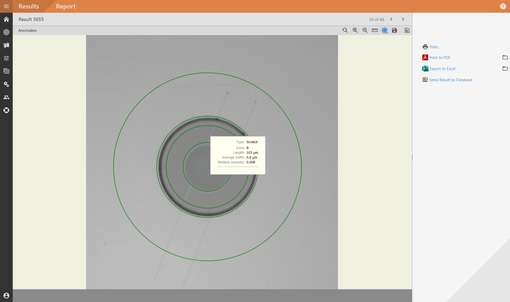

Test result for a scratch artifact
