Fiber Inspection Microscopes

Microscopes for network maintenance, lab and manufacturing to inspect the end face of single and multi-fiber connectors for scratches, defects and contamination.

Compare Microscopes

MANTA series: handheld and benchtop use

Compact microscopes for endface inspection of all types of single and multi-fiber optical connectors, patch cords and bulkhead, including but not limited to: MT, MPO, SN-MT, MMC, ELSFP, LC, FC, SC, CS®, SN®, MDC, E2000™, MXC, PRIZM, QSFP, ARINC, MIL-38999, ODC®, Q-ODC®, SMA, High-power SMA, Avim, mini-Avim and more.

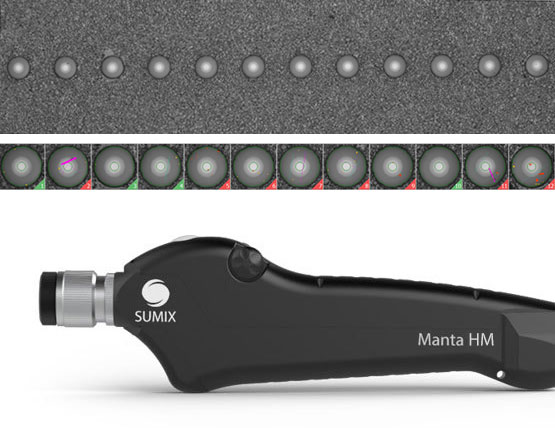

Fiber inspection microscope Manta HM

Manta HM

For applications where small defects matter.
Only one shot required to check a multi-fiber endface.

Best Seller
Fiber inspection microscope Manta W+

Manta W+

The easiest and fastest MPO inspection.
Only one shot required to check a multi-fiber endface.

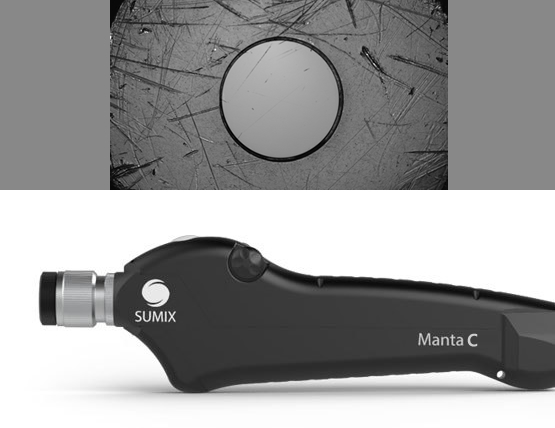

Fiber inspection microscope SMX-Manta

Manta C

Single-fiber inspection with broader area covered. Ideal for large fibers and large cores.
MPO inspection in two steps as a bonus.

New

Compatibility with Android added to Manta HM to provide for field portability. Learn more

Robotic Microscope

NEW
Glide MT Robotic microscope
Glide MT

Robotic microscope for automated inspection of MIL-DTL-38999 connectors. Multiple MT end faces and termini are scanned in a programmed sequence.
Non-contact inspection for scratches, defects and contamination.
Made for production and field maintenance.

Benchtop Microscope

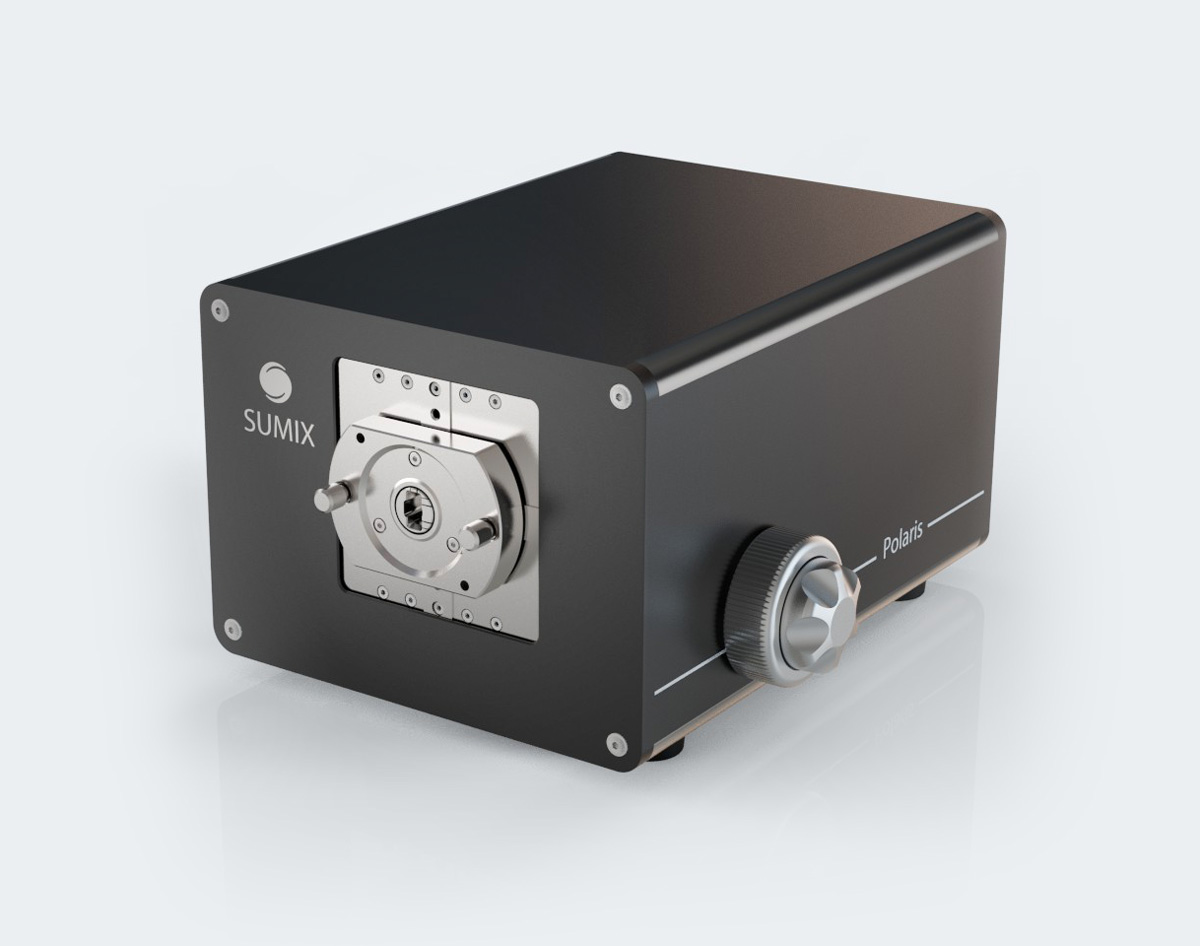

Polaris X Benchtop Microscope
Polaris X

High-end fiber microscope for detailed inspection of single fiber and multi-fiber ferrules and patch cords, such as SC, FC, ST, LC, MU, MT, MTP®/MPO, as well as objects requiring longer working distance like ODC connectors or MPO cassettes.
High-resolution desktop unit.
Fully automated MPO endface inspection.

Discontinued models:

Scopio B - Digital inspection probe for field use. Designed for visualization and analysis of single-fiber end faces.

Scopio A - Analog inspection probe for a simple visual check. Provided with 3.5" TFT display.

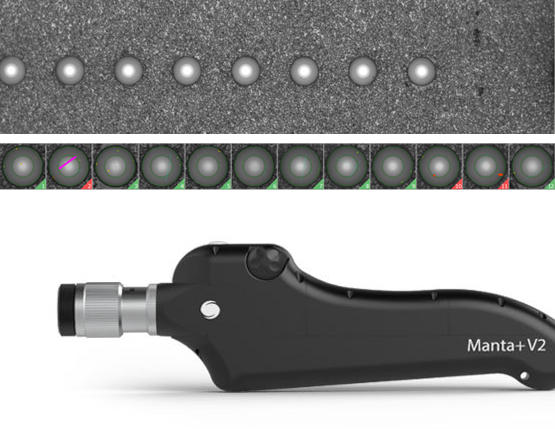

Manta+v2 – Portable microscope for single fiber inspections and MPO inspection in two steps. Replaced with Manta C.

Polaris – Benchtop microscope for detailed inspection of single fiber and multi-fiber ferrules and patch cords. Replaced with Polaris X.

Comparison Chart

  Polaris X Manta HM Manta W+ Manta C Glide MT
Primarily designed for inspection of: single fiber and multi-fiber connectors single fiber, multi-fiber and SMA connectors single fiber, multi-fiber and SMA connectors single fiber and SMA connectors MIL-DTL-38999 connectors and similar
Type: Benchtop Handheld and benchtop Handheld and benchtop Handheld and benchtop Handheld and benchtop
Field of view: 0.76 × 0.43 mm 4.2 × 2.8 mm 4.1 × 3.0 mm 2.26 × 1.27 mm 4.2 × 2.8 mm
Defect size detection: 0.2 µm 0.5 µm 0.75 µm 0.75 µm 0.5 µm
Optical resolution: 0.63 µm 1.5 µm 1.8 µm 1.8 µm 1.6 µm
Price level:
Magnification: 1384×* 360×* 260×* 470×* 360×
Focus: autofocus/manual autofocus/manual autofocus/manual autofocus/manual autofocus
Camera type: digital, USB 3.0 digital, USB 3.0 digital, USB 3.0 digital, USB 3.0 digital, USB 3.0
Power source: AC adapter USB 3.0 Port of PC USB 3.0 Port of PC USB 3.0 Port of PC AC adapter
Cable: USB 3.0 USB 3.0, detachable USB 3.0, detachable USB 3.0, detachable USB 3.0, detachable
Compatible with: desktop PC, laptop desktop PC, laptop, tablet, Android phone** desktop PC, laptop, tablet desktop PC, laptop, tablet desktop PC, laptop, tablet
Can be combined with polarity check: no yes yes no no
Dimensions (H × W × L): 129 × 173 × 259 mm (5.08 × 6.81 × 10.2 inches) 77 × 36 × 249 mm (3 × 1.4 × 9.8 inches) 77 × 28 × 249 mm (3 × 1.1 × 9.8 inches) 77 × 28 × 249 mm (3 × 1.1 × 9.8 inches) 101 × 89 × 266 mm (3.98 × 3.5 × 10.47 inches)
Weight: 5.2 kg (11.46 lbs) 491 g (1.08 lbs) 491 g (1.08 lbs) 491 g (1.08 lbs) 1.35 kg (2.98 lbs)

* Calculated for 24'’ screen (1920 × 1080)
** Currently - Google Pixel 5a or higher

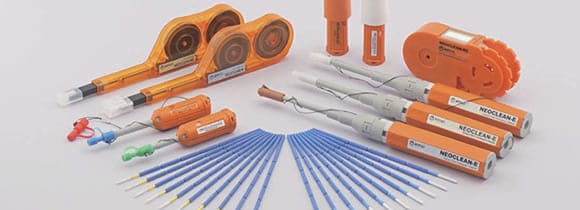

Cleaning Tools

Cleaning Tools from NTT

Sumix now offers optical connector cleaning tools together with microscopes to cover all your inspection and cleaning needs.

Polarity, Continuity and Fiber Sequence Verification

Polarity, Continuity and Endface Inspection Solution for MPO patch cords

Complete the end face inspection with polarity validation.

Easily check polarity of MPO, MT and SN-MT® cables with
MAX-Quantum and MAX-QM+ interferometers or
Manta HM and Manta W+ microscopes
by adding compact MPO Verifier and SN-MT Verifier modules to your system.
